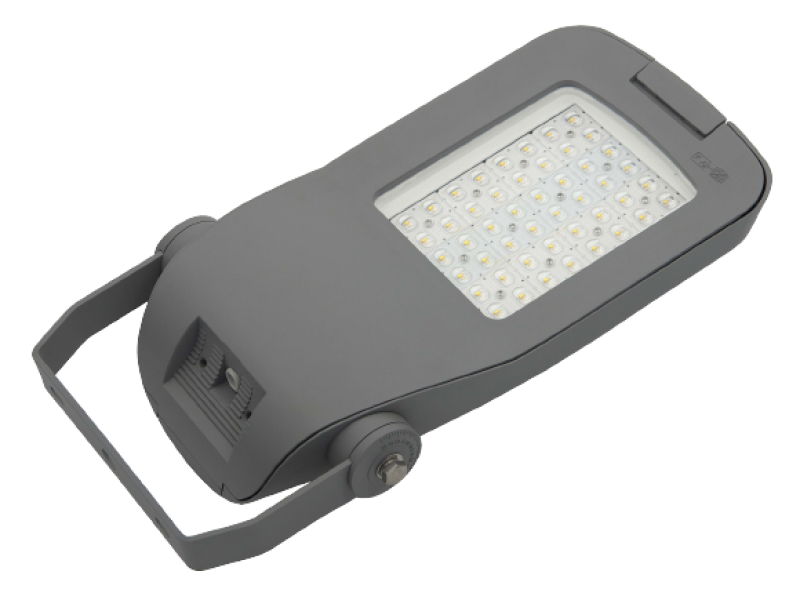

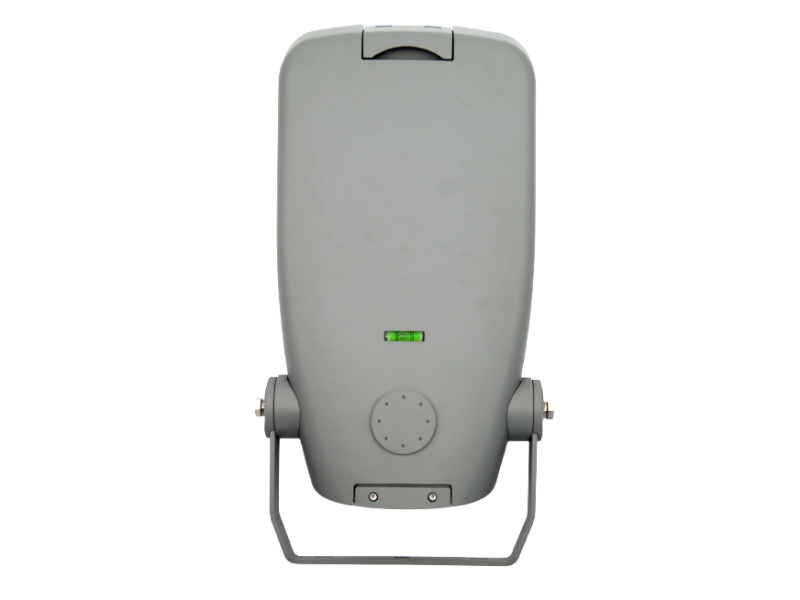

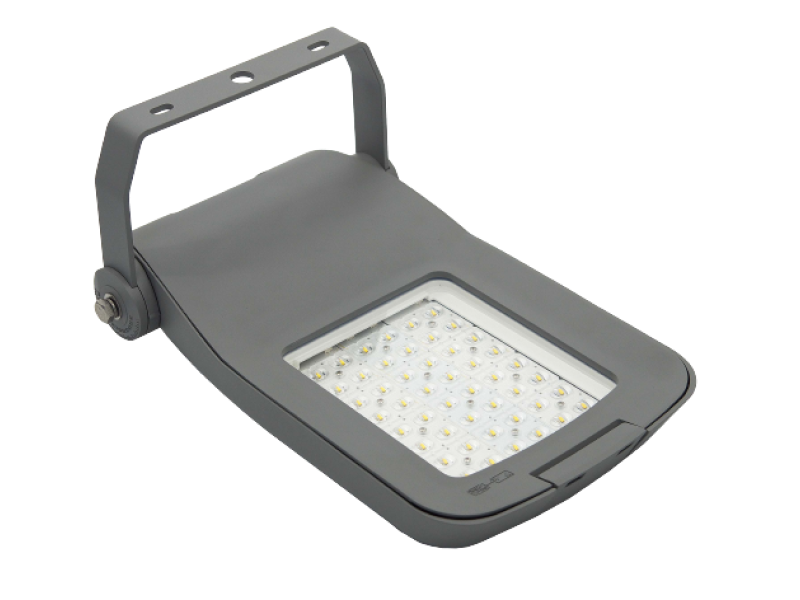

VEGA 2F 30W-150W

The VEGA 2F is an all-encompassing LED flood light that can be utilized in medium to larger-sized spaces. It works perfectly for parking lots, building curtains, sporting courts, and outdoor event venues due to its power range of 30W to 150W. This model integrates high output energy efficiency with superb lumen output, resulting in sharp, broad lighting while reducing energy use. Its outstanding construction and unique thermal control management firmly guarantee effective functioning in extreme climatic regions. The VEGA 2F is an economically friendly option to increase security and safety measures in public and recreational places.

说明

技术规格

模型名	发光二极管	电源 (W)	功率因数 PF	最大风荷载面积，SCd，平方米	安装高度（米）
VEGA 2F	16	30-40	＞0.95	0.15	6
	32	40-70	＞0.95	0.15	8
	48	70-120	＞0.95	0.15	10
	72	120-150	＞0.95	0.15	12

一般信息

电压，V	200- 240
频率，赫兹	50/60
身体	压铸铝

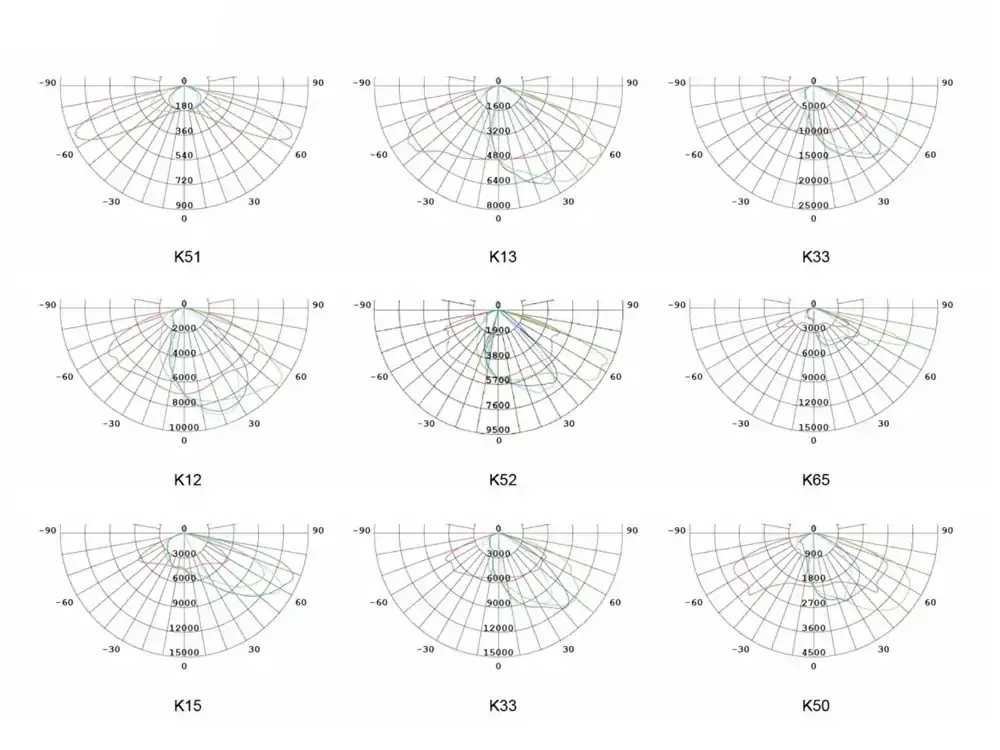

光学系统：	阳极氧化铝反射器和 PC/PMMA 散光器
电：	打开时可快速打开/关闭连接器。
加工：	表面抗老化静电喷涂处理。
色温：	2200K 至 6500K
周围环境：	-40°C至+55°C
控制输入：电气	DALI、0-10V、天文调光、步进调光
类	一级/二级
IP 等级：	IP66
IK 等级：	IK09
浪涌保护：	10KV,10KA
选项：	Photocel、NEMA 插座、Zhaga
认证：	CE,CB,ENEC,EMC.TM21,LM791EC-62471
