STUKS 1 8W-60W

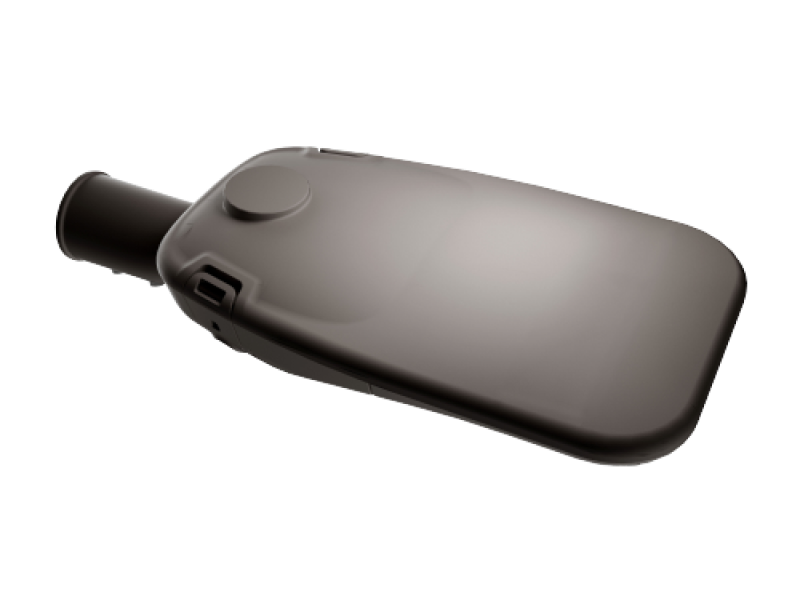

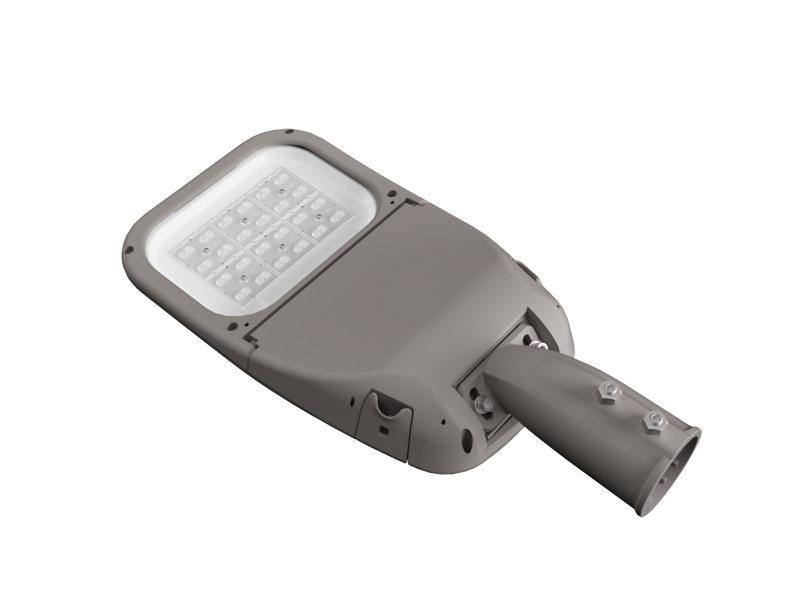

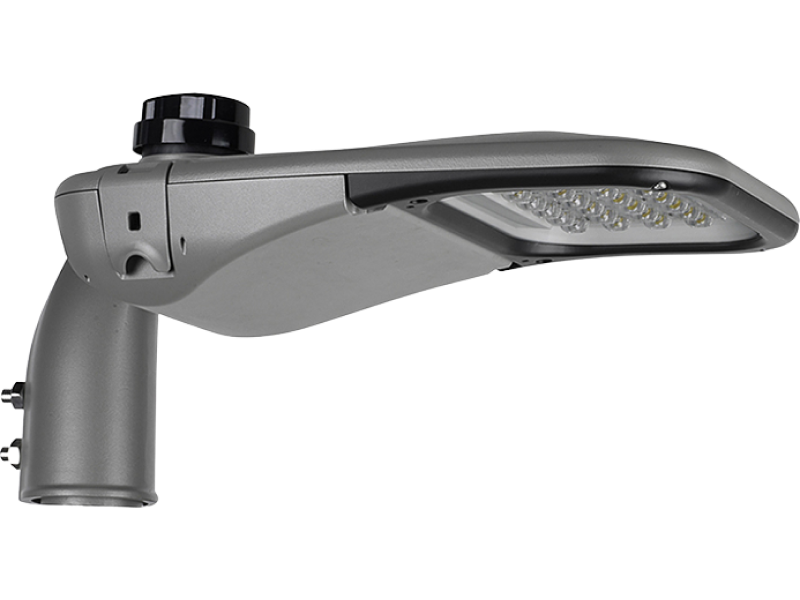

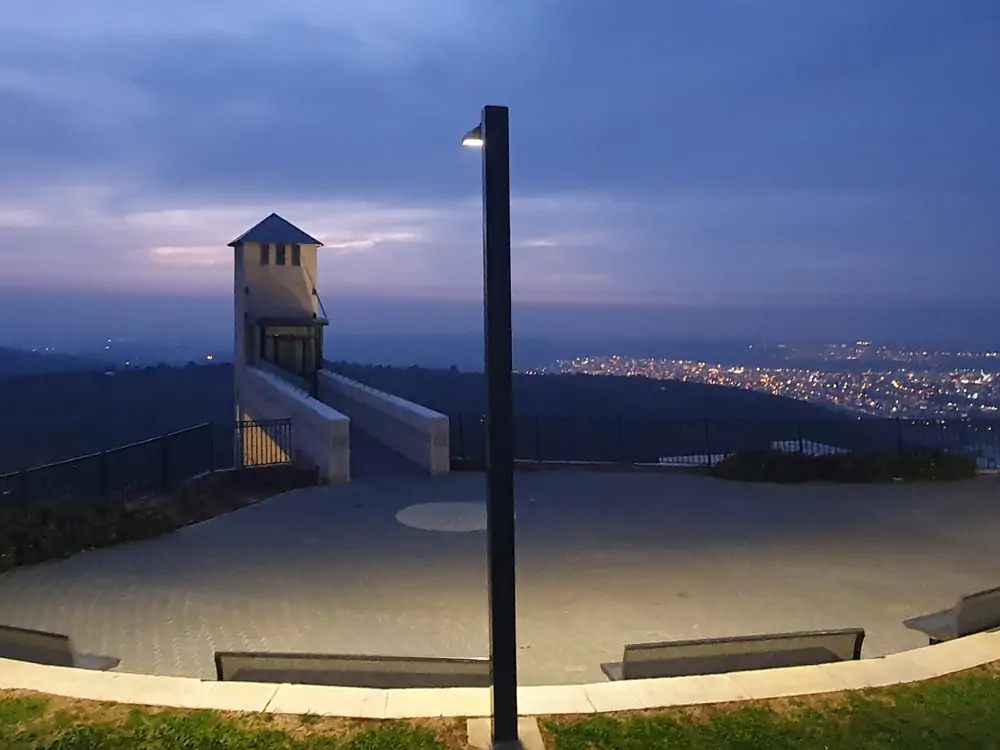

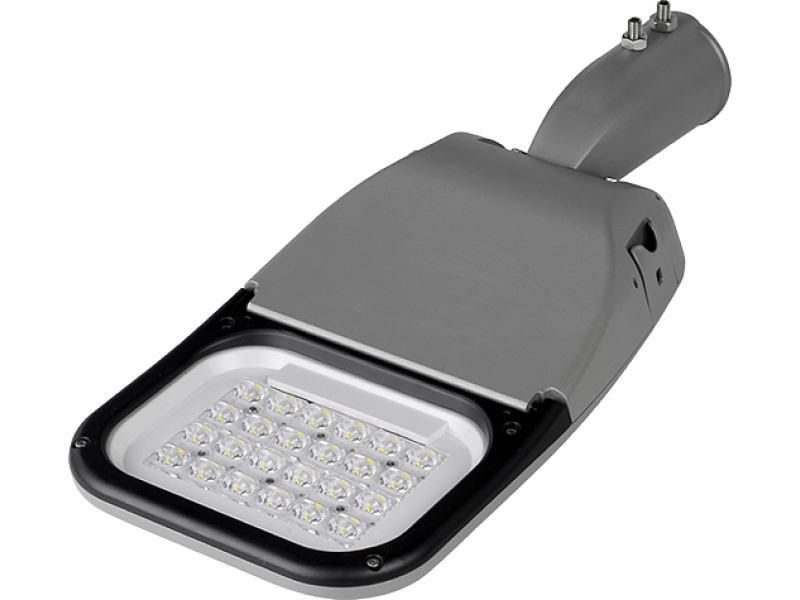

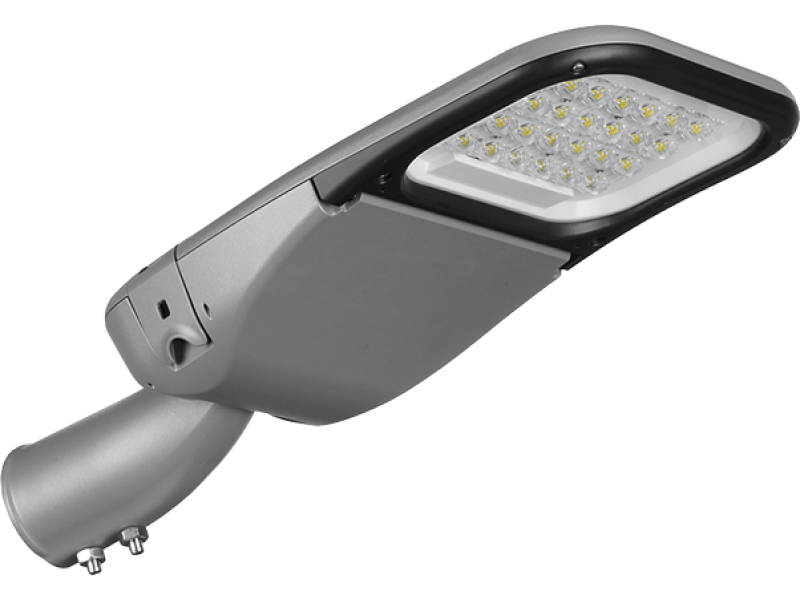

The PISCES 1 is a compact and energy-efficient LED street light designed for small to medium-sized areas. With a power range of 8W to 60W, it’s perfect for residential streets, pathways, and parking lots. Its sleek design and high lumen output ensure bright, uniform lighting while minimizing energy consumption. Durable and weather-resistant, the PISCES 1 is built to withstand harsh outdoor conditions, making it a reliable choice for long-term use.

Beschrijving

Technologiespecificaties

LED's	Stroom (W)	PF	Max. wind laadruimte	Pakket grootte (mm)	Stuks/20ft	Stuks/40HQ
8	8-30	≥0,92	0.11	560x270x160	1150	3400
16	20-50	≥0,92	0.11	560x270x160	1150	3400
24	40-60	≥0,92	0.11	560x270x160	1150	3400

Algemene informatie

Lichaam:	Gegoten aluminium

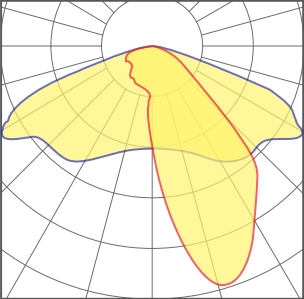

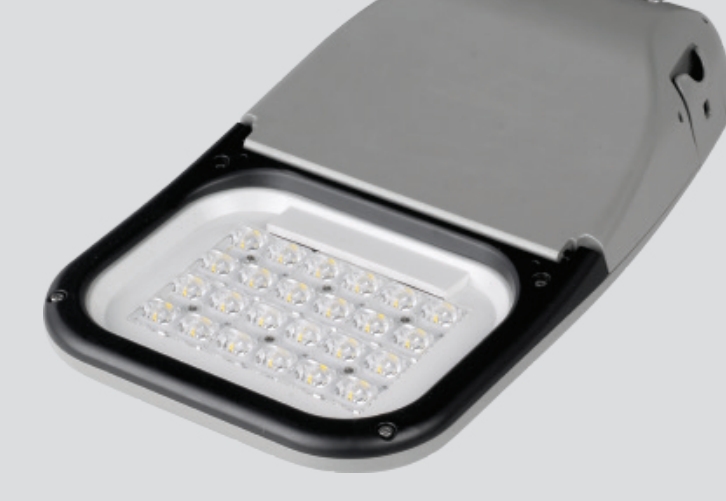

Optisch systeem:	Geanodiseerde Alum i num-reflector en PC/PMMA-diffusor

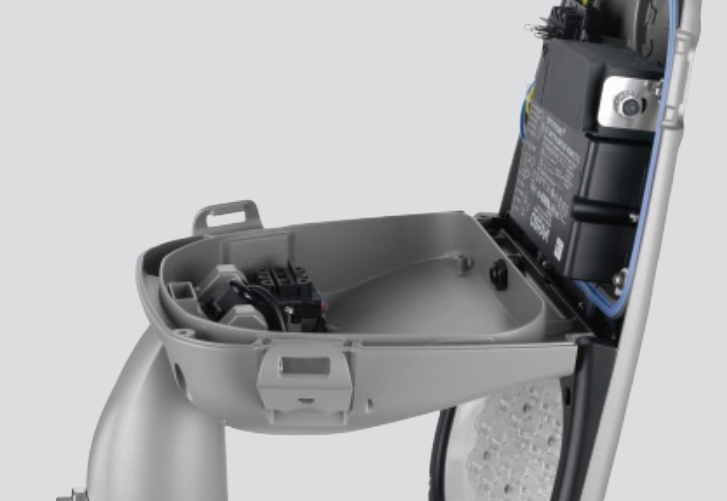

Elektrisch:	Snelle aan/uit-aansluiting wanneer geopend
Afwerking:	Oppervlakte anti-aging elektrostatische sprayverwerking
Kleurtemperatuur:	2200K tot 6500K
Omgeving:	-40°℃ tot +55℃
Controle-ingangen:	DALI,O-10V,Astro afm., stap afm
Isolatieklasse:	Klasse I/Il
IP waarde:	IP66
IK-beoordeling:	IK09
Overspanningsbeveiliging:	10KV, 10KA

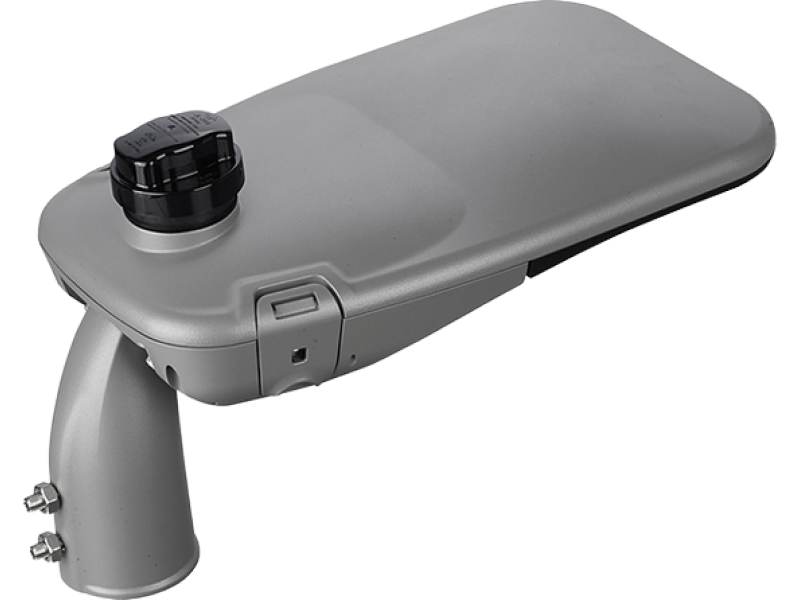

Opties:	Fotocel, NEMA-aansluiting,ZHAGA
Certificering:	CE, CB,ENEC,EMC,TM21,LM79,IEC-62471
